60T Trailer Landing Gear Customized International Standard Semi Trailer Parts with High Lift and Height
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Weierqi |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $100.00-125.00/pieces |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Use: | Trailer Parts | Purpose: | For Replace/repair |
|---|---|---|---|
| Condition: | New | Parts: | Landing Gear |
| OE NO.: | Customized | Max Payload: | 80ton |
| Size: | Customized | Description: | Trailer Landing Gear |
| Gear Box: | Outside | Operation: | Single Side & Double Side |
| Lifting Capacity: | 25 Ton ~ 28 Ton | Static Load: | 50 Ton ~ 80ton |
| Gear Food Type: | T, A, S, G, R | Out Put: | 60,000 Pairs Yearly |
| Working Environment Temperature: | -40-60(℃) | IP Grade: | (salt Spray Test)≥500h |
| Lift/Height: | 430/794; 480/844 | ||
Product Description
Product Description

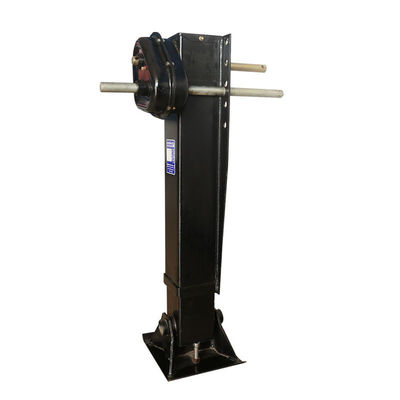

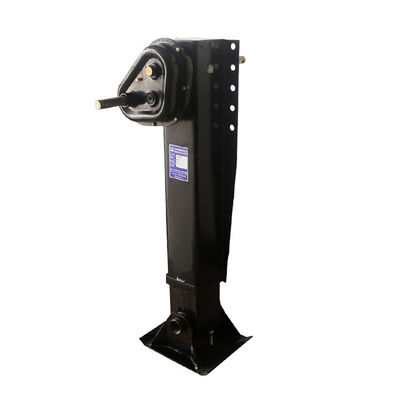

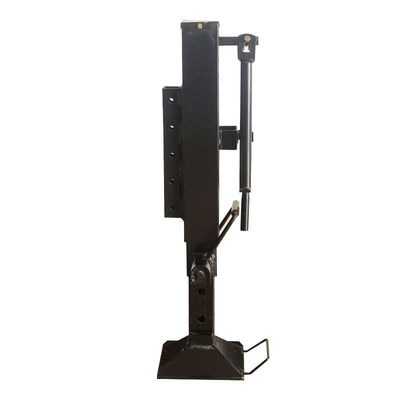

Landing Legs They are used in the semi-trailer and the front of the vehicle. Support the semi-trailer after disengagement. As an indispensable part of the semi-trailer, the commonly used landing gear generally have a stroke of about 480mm, a closed height of about 900mm, a rated load of 28 tons, and a static load of 80 tons.

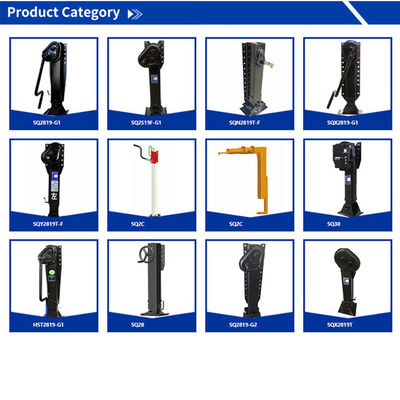

Type | Lift (mm) | Height (mm) | Lift capacity (T/pair) | Static load (T/pair) | High gear (mm/r) | Low gear (mm/r) | Weight |
SQX2819 | 480mm | 840mm | 28ton | 80ton | 11 | 0.9 | 102kg |
SQ2819-G2 | 430mm | 480mm | 25ton ~ 28 ton | 50 ton ~ 80ton | 5.4 | 0.7 | 98kg |
HST2819-G1 | 430mm | 480mm | 28 ton | 5.4 | 0.7 | 106kg | |
SQ30 | 350mm | 833mm | 28T | 80T | 204.5 | 25.5 | 118kg |
SQ2C | 350mm | 833mm | 2T | 10T | |||
SQY2819T-F | 430mm | 480mm | 28 ton | 80ton | 5.4 | 0.7 | 102kg |
SQX2819-G1 | 430mm | 480mm | 25ton ~ 28 ton | 50 ton ~ 80ton | 5.4 | 0.7 | 103kg |
SQN2819T-F | 430mm | 480mm | 25ton ~ 28 ton | 50 ton ~ 80ton | 5.4 | 0.7 | 96kg |
SQ2819F-G1 | 480mm | 840mm | 28ton | 80ton | 5.4 | 0.7 | 98kg |
SQ2817F-G1 | 430mm | 814mm | 28ton | 80ton | 5.4 | 0.7 | 96kg |
SQ2519F-G1 | 480mm | 840mm | 25ton | 70ton | 5.4 | 0.7 | 90kg |
SQ2517F-G1 | 430mm | 814mm | 25ton | 70ton | 5.4 | 0.7 | 88kg |
SQ2819-G1 | 430mm | 480mm | 25 ton ~ 28 ton | 50 ton ~ 80ton | 5.4 | 0.7 | 98kg |
Product Display
Product Details
Product Application
Semi-trailer landing gears are specifically designed to support and stabilize semi-trailers during packing, loading, unloading, and maintenance operations, ensuring stability and safety in various logistical and transportation scenarios.
Packaging & Shipping
Take Delivery: All the product will be fully tested before shipment. Professional operation instruction of the machine.one-year warranty provided, provide the consumable parts at cost price after the warranty period. 24-hour technical support by emails, calling or videos.
